NUOYING NYYCUK-B Fork material: 304,316L (optional) Fork length: 100mm (customizable as required) tuning fork level switch

Name: NUOYING NYYCUKB Fork material 304316L optional Fork length 100mm customizable as required tuning fork level switch
Brand: NUOYING
Price: 39 USD

Quality NUOYING NYYCUK-B Fork material: 304,316L (optional) Fork length: 100mm (customizable as required) tuning fork level switch for sale

Brand Name : NUOYING

Model Number : NYYCUK-B

Certification : CE, SIL, ATEX

Place of Origin : Xi'an,Shaanxi,China

MOQ : 1pcs

Price : $39 to $49/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working day

Packaging Details : 40*30*30cm

Grade : Industrial

Warranty : 12 months

Customized support : OEM, ODM

Applications : Liquid

Environment temperature : -40~+80℃

Power supply : 24VDC,220VAC

Operating temperature : Fork body:-40~+180℃; instrument: -40~+80℃

Fork material : SS304,316L

Fork length : 44mm(customized

Process pressure : <2.0MPa

Procedure linkage : Thread, flange (optional)

Signal Output : DPDT relay output

Contact Now

Highly sensitive NYYCUK-B tuning fork level switch for accurate measurement

NYYCUK-B Tuning Fork Level Meter Overview

Products Description

NYYCUK-B Tuning Fork Switch Working Principle

NYYCUK tuning fork level switch is a new type of level switch. It is designed and manufactured using the principle of tuning fork vibration. It is on the base of the induction rod of the tuning fork level switch, the tuning fork rod is driven through the piezoelectric chip, and the vibration signal is received by another piezoelectric chip, so that the vibration signal can be circulated, and the induction rod can be resonated. When the material is in contact with the induction rod, the vibration signal gradually becomes smaller, until the resonance stops, the control circuit will output.

The principle is that the sensitivity of the dry and salty bar is gradually weakened from the front to the back seat, so when the material in the barrel and the surrounding of the barrel are piled up, and the bell and the bar base (rear) or discharge, there will be no error. Set up signal. Simply put, the sound produces mechanical vibration under the excitation of the piezoelectric product, and this vibration has a certain frequency and amplitude. When the tuning fork is submerged in liquid or solid, the vibration frequency and amplitude of the tuning fork will change. This frequency change is detected by the electronic circuit and outputs a switch value.

Product Parameters

NUOYING NYYCUK-B Fork material: 304,316L (optional) Fork length: 100mm (customizable as required) tuning fork level switch

Typical application	Liquid
Fork material	304, 316 ( optional)
Fork length	44mm
Power supply	24VDC, 220VAC
Working temperature	Fork body:-40~+180℃
Process pressure	＜2.0MPa
Process connection	Flange,thread (optional)

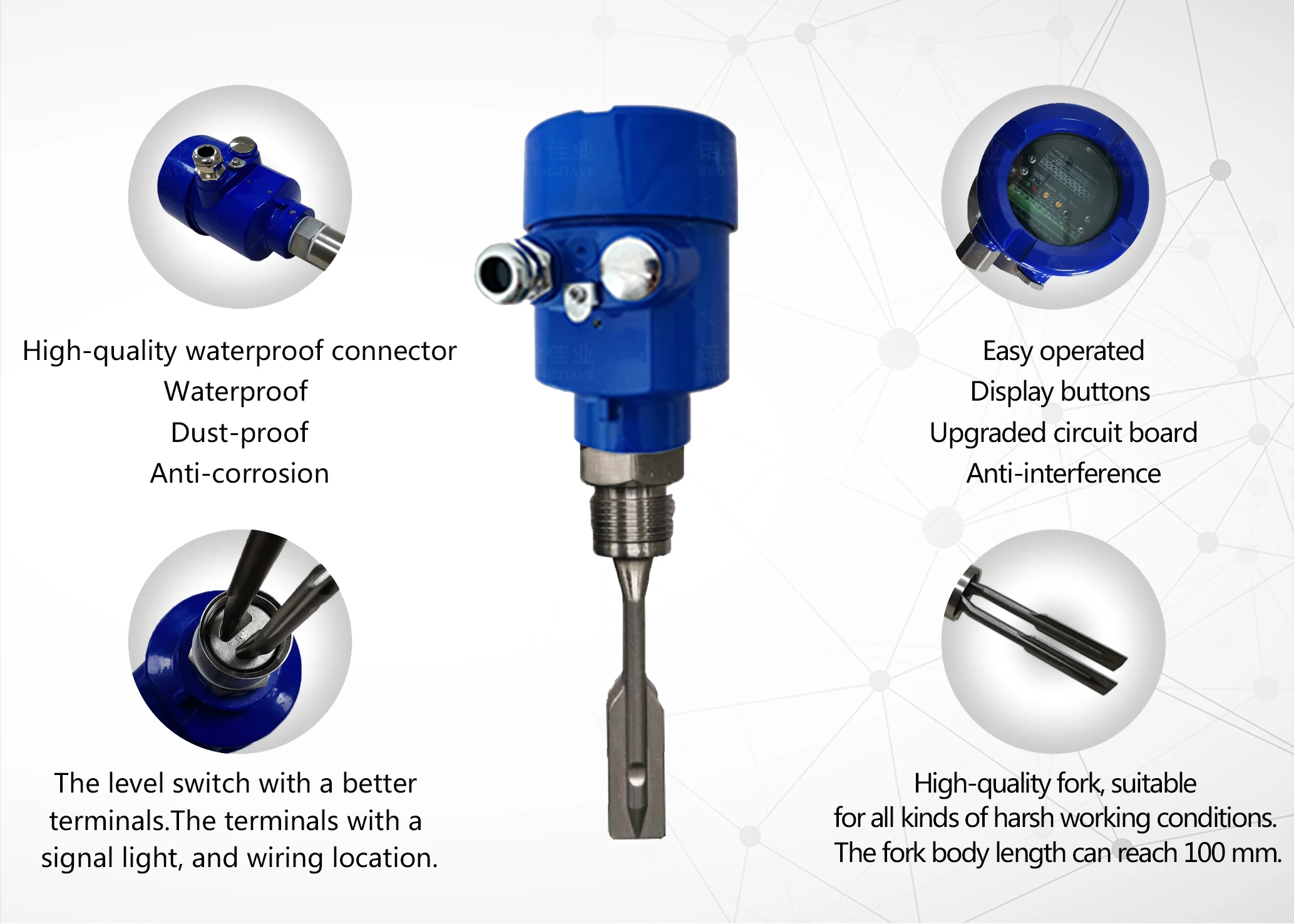

Product details

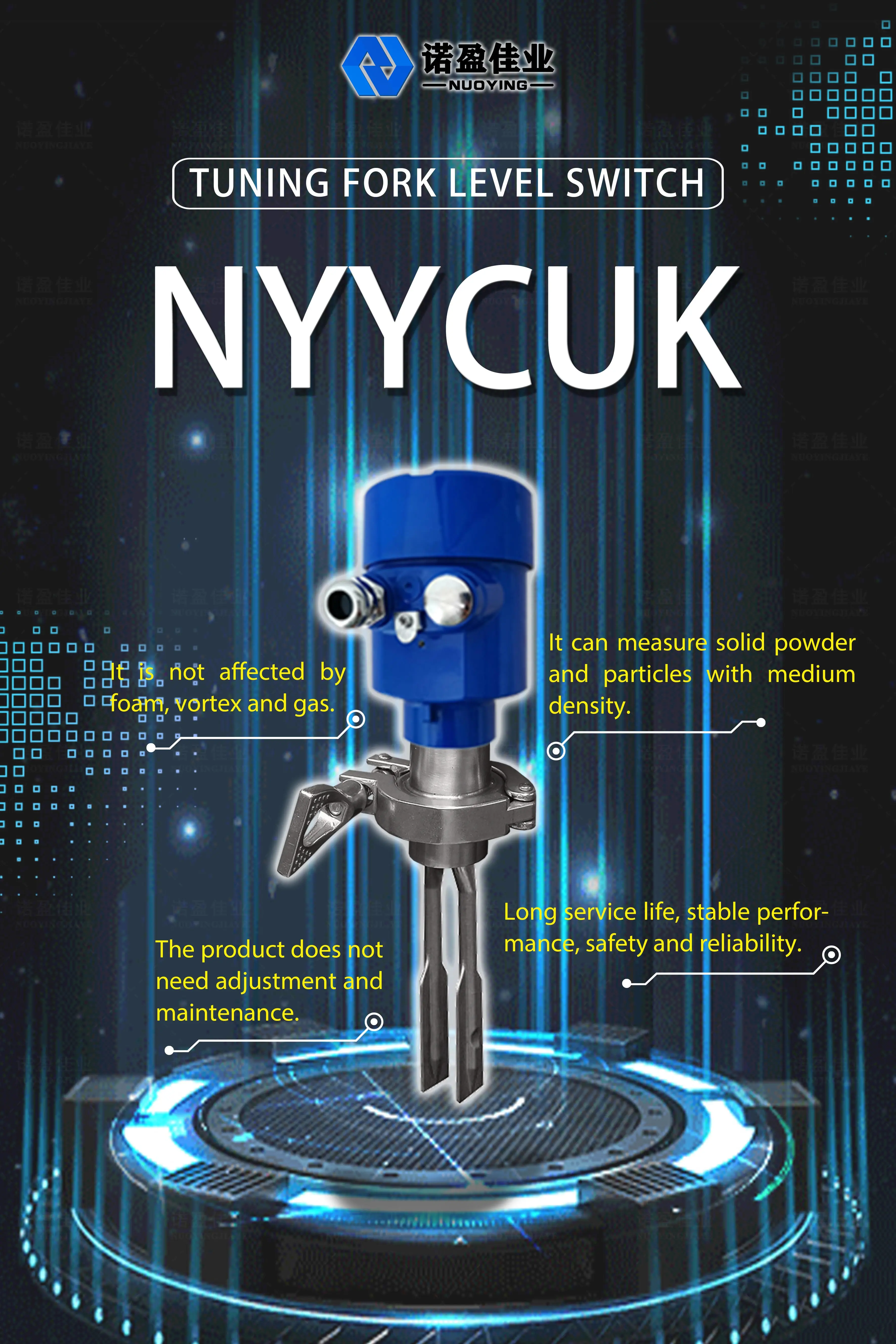

Product feature

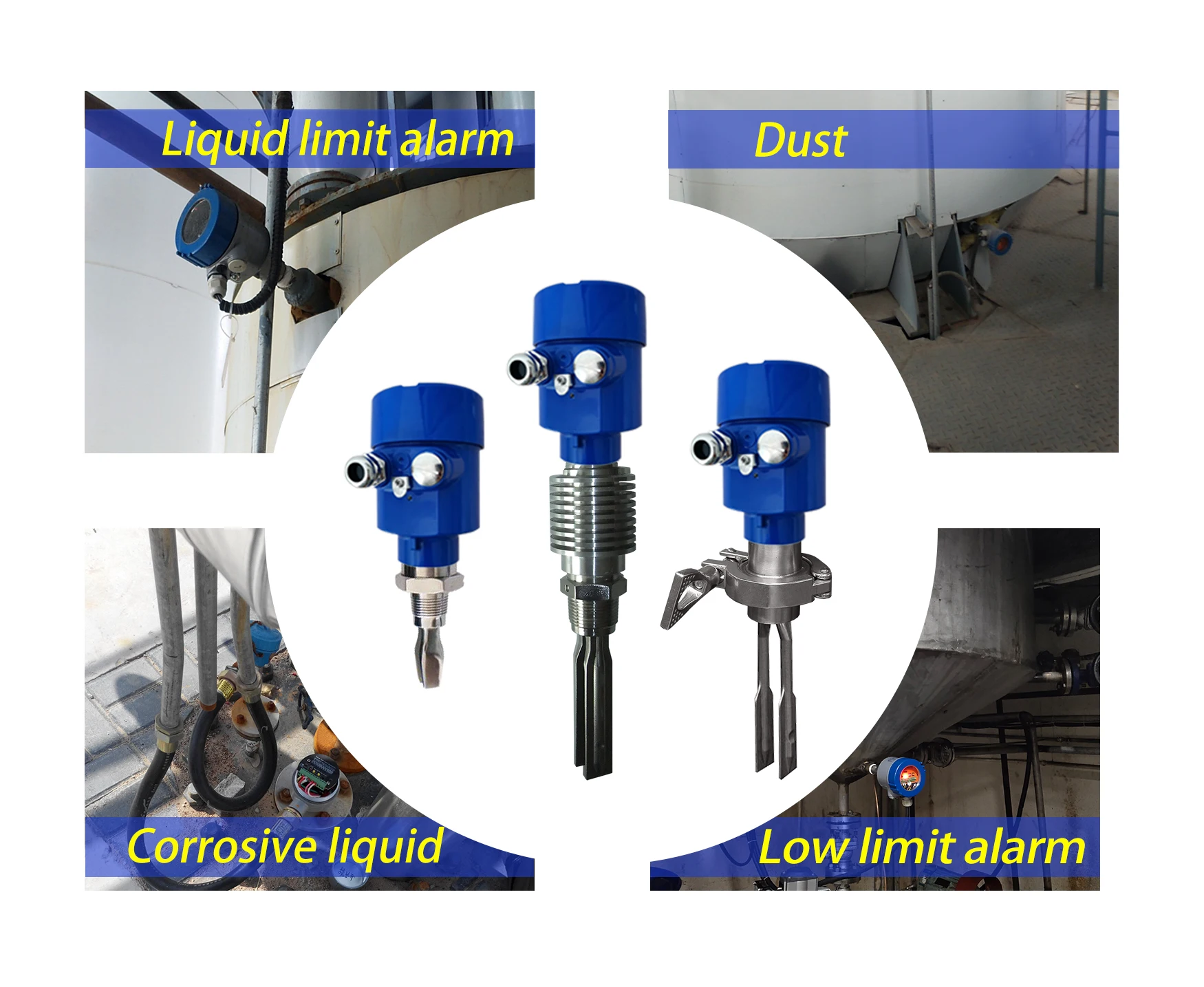

Various application

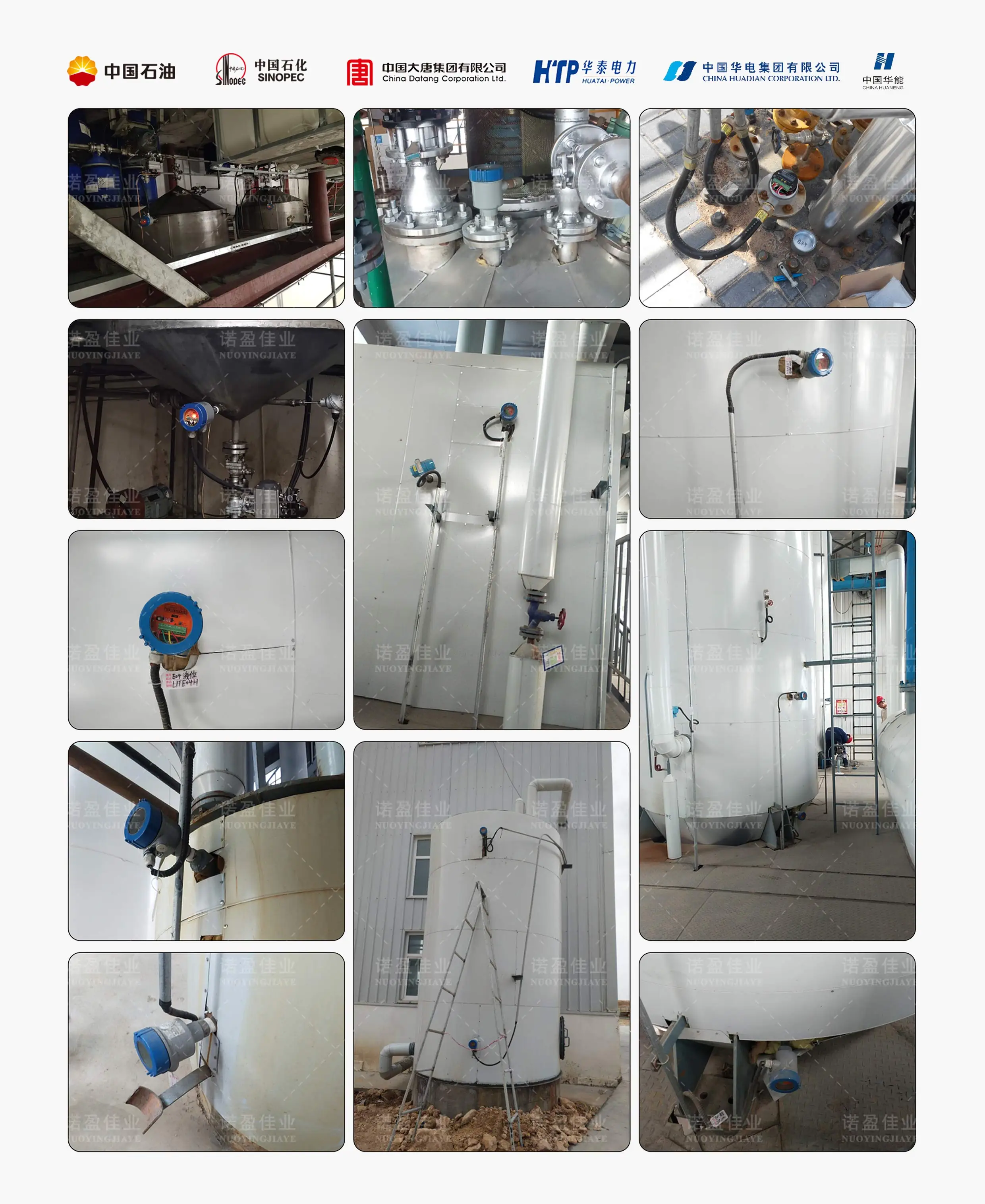

Cooperative customers

Product certificate

NUOYING NYYCUK-B Fork material: 304,316L (optional) Fork length: 100mm (customizable as required) tuning fork level switch Images
